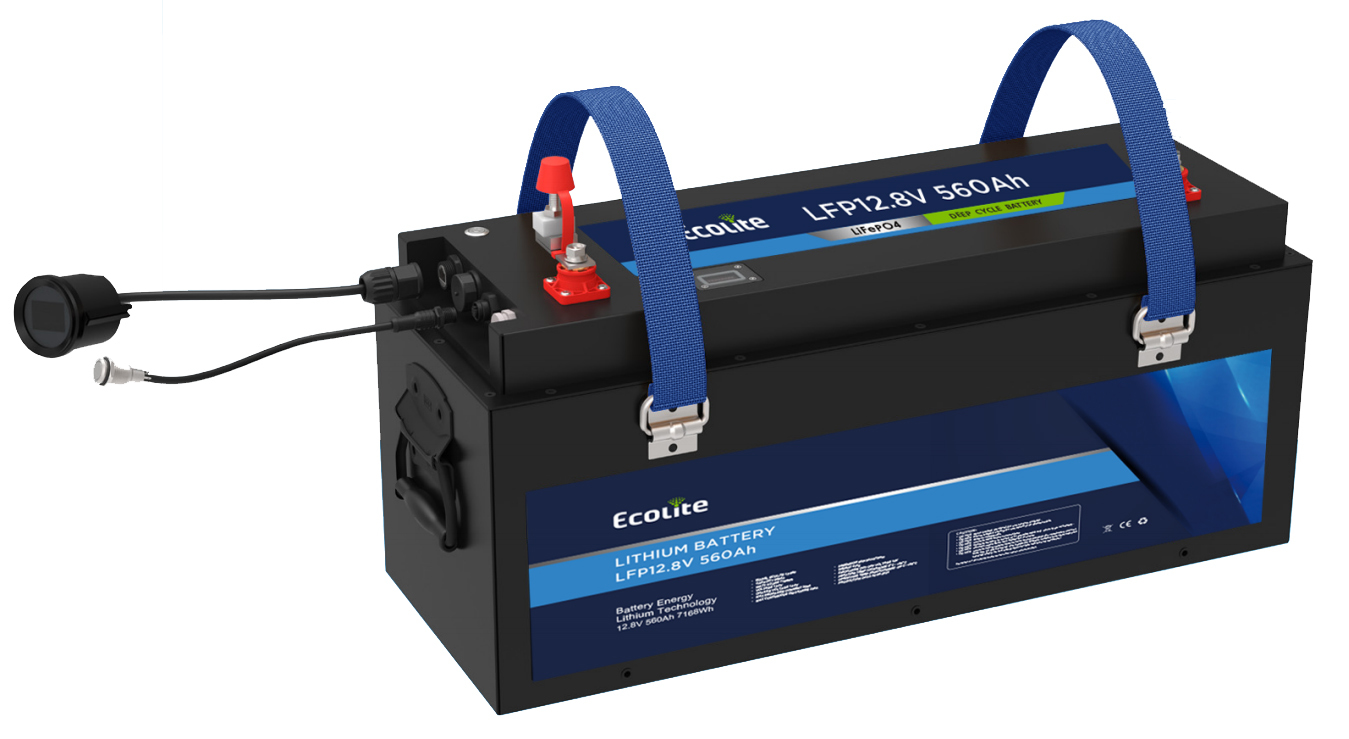

LFP12.8V 560Ah Deep Cycle LifePO4 Lithium Battery For Marine Boat Yacht
ECOLITE 12 V battery is based on Lithium Iron Phosphate chemistry. As a result, these Marine LiFePO4 batteries are safe and reliable. Additionally, the next level technology of this chemistry results in a high energy density. In other words, it is the ultimate choice to replace your lead-acid batteries. Moreover, easily expand your battery storage system by connecting the LFP 12 V lithium-ion batteries in parallel. This increases the system capacity.
ECOLITE Lithium batteries are 100% safe & reliable. Our signature chemistry, Lithium Iron Phosphate (LiFePO4), does not contain rare earth elements (like Cobalt) or heavy metals, is non-toxic, including no lead or acid, is non-corrosive, does not off gas, requires no watering or maintenance, can be placed in any orientation, and unlike other lithium batteries will not explode or catch fire. In addition, each ECOLITE Lithium battery is protected from over heating, over charging, and short circuiting, by a battery management system (BMS) microchip that also extends the lifespan and is contained in a rugged, waterproof case (although enough water can conduct electricity between the terminals, so don’t submerse the battery). For best performance & reliability we recommend using a LiFePO4 charger.
Specifications
| Electrical Parameters |
|
| Battery Voltage |
12.8V |
| Rated Capacity |
560Ah |
| Energy |
7168Wh |
| Resistance |
≤30mΩ |
| Efficiency |
≥0.98 |
| Cycle Life |
>6000cycles @0.5C,80% DOD |
| Self Discharge |
<5% per Month |
| Max, Modules in Series,Parallel |
4S/2P |
| MechanicalParameters |
|
| Dimension(LxWxH) |
401x351x342mm |
| Dimension((LxWxH) |
15.79x 13.82x 13.46 |
| Weight |
50Kg |
| Terminal Type |
M8 |
| Battery Housing |
ABS |
| Housing Protection |
IP65 |
| Cell Type-Chemistry |
LiFePO4 Cell |
| Communication |
Bluetooth |
| Discharge Parameters |
|
| Continuous Discharge Current |
200A |
| Pulse Discharge Current |
300A(<1S) |
| Recommended Volt. Disconnect |
10V |
| BMS Discharge Cut-off Voltage |
10V |
| Reconnect Voltage |
10.8V |
| Short Circuit Protection |
300-800us |
| Charge Parameters |
|
| Charge Method |
CC-CV |
| Charge Voltage |
14.2~14.6V |
| Recommended Float Voltage |
13.3~13.4V@100% |
| Recommended Charge Current |
/ |
| Maximum Charge Current |
200A |
| BMS Charge Cut-off Voltage |
14.8V |
| Temperature Parameters |
|
| Discharge Temperature |
-20℃ to 60℃ |
| Charge Temperature |
0℃ to 55℃ |
| Storage Temperature |
-20℃ to 60℃ |
| BMS High Temperature Cut-off |
65℃ |
FEATURES
Lithium lron Phosphate (LiFePO4).
The SafestLithium Technology.
Integrated Battery Management System(BMS)
Maximum support 4 in series or 4 in parallel.
Long Cycle Life >4000cycles@ 80%DOD.
Designed for Maritime Demands
ECOLITE Marine LiFePO4 battery excel in commercial marine applications, ensuring:
Consistent Energy Supply: Dependable power for mission-critical systems and operations.
Enhanced Vessel Efficiency: Lightweight batteries free up capacity for cargo or passengers.
Fast Recharge Rates: Enables tighter ferries, fishing vessels, and offshore support schedules.
Cost-Effective Lifespan: Reduce operational costs with longer-lasting, maintenance-free energy solutions.
To sum up some typical 12 V applications: motorhomes, rescue trucks and small luxury yachts
