25.6V 150Ah High-Efficiency Forklift Lithium Battery For Light-To-Medium Duty Operations

100 birimler
MOQ
Inquiry
fiyat
25.6V 150Ah  High-Efficiency Forklift Lithium Battery For Light-To-Medium Duty Operations
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Pil voltajı: 25.6V
Nominal kapasite: 100AH
Enerji: 2560Wh
Boyut (W × D × H), sapı içerir: 650 × 140 × 450mm
Ağırlık: 135±5kg
Terminal tipi: Rema160, Anderson175a
Akü Konumu: SPCC
Bisiklet hayatı: >3000 döngü@1C,80%DOD
Temel bilgiler
Menşe yeri: ÇİN
Marka adı: Ecolite/OEM/ODM
Sertifika: UN38.3 MSDS CE
Model numarası: LFP24-100
Ödeme & teslimat koşulları
Ambalaj bilgileri: Karton palet konteyneri
Teslim süresi: 1-2 ay
Ödeme koşulları: L/C, T/T
Yetenek temini: Ayda 200 adet
Ürün Açıklaması

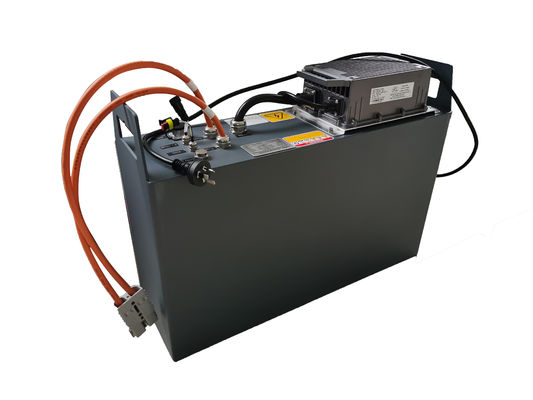

25.6V 150Ah High-Efficiency Forklift Lithium Battery For Light-To-Medium Duty Operations



For businesses relying on light-to-medium duty forklifts—such as small warehouses, retail distribution centers, or manufacturing workshops—the EcoLite 25.6V 150Ah stands as the ideal Forklift Lithium Battery solution. Engineered specifically as a compact, high-performance Forklift Lithium Battery, it delivers the perfect balance of energy, portability, and durability to power smaller forklifts (e.g., walkie stackers, narrow-aisle reach trucks) without the bulk of larger batteries. Unlike traditional lead-acid alternatives that weigh down compact forklifts and require frequent maintenance, this Forklift Lithium Battery cuts downtime, boosts maneuverability, and aligns with modern operational needs. Every feature of this Forklift Lithium Battery is tailored to the unique demands of light-duty forklift use, making it the go-to choice for businesses seeking efficiency in tighter spaces.

25.6V 150Ah  High-Efficiency Forklift Lithium Battery For Light-To-Medium Duty Operations 0

         SPECIFICATION



Electrical Parameters
Nominal Voltage 25.6V
Rated Capacity 100Ah
Energy 2560Wh
Resistance ≤35mΩ
Efficiency ≥0.98
Cycle Life >3000cycles @1C,80% DOD
Self Discharge < 5% per Month
Max. Modules in Series/Parallel 8S/1P





Mechanical Parameters
Dimension(WxD×H)
Include handle
650x140x4mm
25.59x7.72x 18.35"
Weight 135±5kg
Terminal Type REMA160,Anderson175A
Battery Housing SPCC
Housing Protection IP54
Cell Type-Chemistry LiFePO4 Cell
Communication RS485 CAN



Discharge Parameters
Continuous Discharge Current 100A
Pulse Discharge Current 200A(<20S)
Recommended Volt. Disconnect 20V
BMS Discharge Cut-off Voltage 20V
Reconnect Voltage 24V
Short Circuit Protection /





Charge Parameters
Charge Method CC-CV
Charge Voltage 28.4~29.2V
Recommended Float Voltage 26.8~27.6V
Recommended Charge Current 50A
Maximum Charge Current 100A
BMS Charge Cut-off Voltage 30V





Temperature Parameters
Discharge Temperature -20 ℃ to 60 ℃
Charge Temperature 0 ℃to 55 ℃℃
Storage Temperature -20 ℃ to 60 ℃
BMS High Temperature Cut-off 65 ℃




This isn’t just a smaller battery—it’s a purpose-built Forklift Lithium Battery that redefines performance for light-to-medium duty forklifts. Leveraging advanced lithium technology, it addresses the specific pain points of compact forklift operations, outperforming lead-acid batteries in flexibility, efficiency, and longevity. Here’s why it’s the top Forklift Lithium Battery for your smaller fleet:
Optimized Capacity for Light-Duty Use: A Forklift Lithium Battery That Matches Your Workflow
As a specialized Forklift Lithium Battery, the 25.6V 150Ah model delivers ~3840Wh of energy—perfect for powering walkie stackers, pallet jacks, or narrow-aisle forklifts through 6–8 hours of daily use (e.g., moving small pallets, restocking retail shelves). It avoids the “overcapacity waste” of larger batteries, ensuring you only pay for the power you need. This makes the Forklift Lithium Battery ideal for small warehouses or retail backrooms where forklifts aren’t handling heavy loads but still need consistent runtime.
Ultra-Lightweight Design: A Forklift Lithium Battery That Enhances Maneuverability
At ~50kg (nearly 50% lighter than lead-acid batteries of similar capacity), this Forklift Lithium Battery transforms compact forklift performance. Its reduced weight makes narrow-aisle navigation smoother, eases operator fatigue during long shifts, and eliminates strain on the forklift’s lifting mechanism. For walkie stackers or hand-operated forklifts, this lightweight Forklift Lithium Battery even simplifies manual positioning—critical for tight spaces where every inch matters.

Rapid Charging: A Forklift Lithium Battery That Minimizes Break Times
One of the biggest advantages of this Forklift Lithium Battery is its fast-charging capability, tailored to light-duty shift schedules. It reaches 80% charge in just 1 hour and 100% in 2.5 hours—far faster than lead-acid batteries (which take 6–8 hours). A quick 20-minute top-up during a lunch break can extend runtime by 2–3 hours, ensuring your forklift stays operational through peak periods. This fast charging makes the Forklift Lithium Battery perfect for retail environments with morning/afternoon restocking shifts.
No Memory Effect: A Forklift Lithium Battery That Adapts to Your Schedule
Lead-acid forklift batteries lose capacity if charged before full discharge—but this Forklift Lithium Battery eliminates that hassle. You can charge it partially between tasks (e.g., after a quick pallet run) or fully overnight, without reducing its long-term capacity. This flexibility lets you align charging with your workflow, not the other way around—another reason this Forklift Lithium Battery simplifies light-duty operations.
Zero Maintenance: A Forklift Lithium Battery That Cuts Labor Costs
Traditional lead-acid forklift batteries require weekly upkeep: checking water levels, cleaning corrosion, and adding distilled water. This Forklift Lithium Battery is 100% maintenance-free—no spills, no water refills, and no terminal cleaning. For small businesses with limited staff, this means more time spent on core tasks (like order fulfillment) and less on battery care. The maintenance-free design alone makes this Forklift Lithium Battery a cost-saving choice.

Wide Temperature Tolerance: A Forklift Lithium Battery for All Environments



The EcoLite 25.6V 150Ah's compact size, lightweight design, and efficient power make it the perfect Forklift Lithium Battery for light-to-medium duty forklift use cases:

Manufacturing Workshops: Powers compact forklifts moving raw materials (e.g., metal sheets, plastic rolls) or finished parts between production stations.
Logistics Pickup Points: Supports small forklifts handling parcel sorting, loading small cargo onto delivery trucks, or organizing inventory in limited-space hubs.
Cold Storage (Mild Temperatures): Performs reliably in cool environments (e.g., 0℃~10℃) for forklifts moving refrigerated goods in small cold rooms.
